Description
Specifications

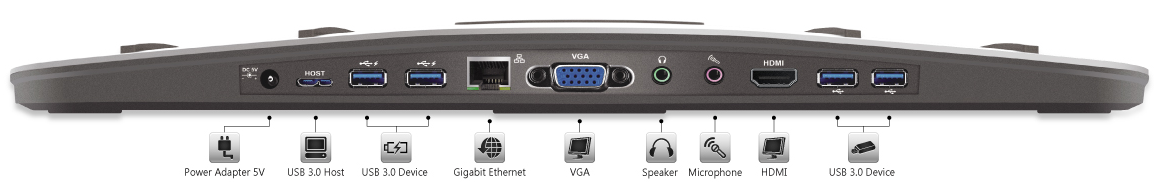

Host Interface
USB 3.0 micro B connector
Cable
USB 3.0 micro B to type A
Video Interface
VGA-DB 15 pin female connector
Standard HDMI female connector (includes audio)
Ethernet
RJ-45 female connector (Gigabit Ethernet)
USB Port
USB 3.0 female connector x4
USB 3.0 battery charging V1.2 charging port x 2
(the two ports, with the icon, provide additional power up to 2A fast-charging an iPad®, smart phones, tablet or similar products)
Audio Jack
Microphone: 3.5 mm stereo audio in
Speaker: 3.5 mm stereo audio out
Display
Dual display resolution: 2048 x 1152 @ 32bit
Dual display modes: primary, extended, mirror
Dual display rotation: 0°, 90°, 180°, 270°
Ethernet Transfer Rate
1000 Mbps (Half Duplex) / 1000 Mbps (Full Duplex)
Ethernet IEEE
IEEE 802.3az, IEEE 802.3, 802.3u, and 802.3ab, IEEE 802.3x
Ethernet Modes
Supports Wake on LAN function, suspend mode and remote wakeup via link-change, magic packet, or Microsoft wakeup frame
Supports IEEE 802.1Q VLAN tagging and 2 VLAN ID filtering
Supports Jumbo Frame
Supports Checksum Offload (IPv4, IPv6, TCP, UDP) and TCP Large Send Offload
Dimensions
Width
13.77″
Height
1.18″
Depth
4.76″
Cable Length
23.62″
60 cm
Weight
Approximately 0.38 lbs. (0.174 kg )
Housing Material
ABS
System Requirements
Microsoft Windows 10/ 8.1/ 8/ 7 (32-bit or 64-bit)
Mac OS X 10.8 or later
Available USB 3.1/3.0/2.0 port (USB 3.1/3.0 recommended)
Office applications / Web
CPU: Intel Core i3 Dual Core 2.8GHz
RAM: 2 GB memory or higher
One 2K (2048 x 1152 @ 60Hz) full-screen video playback
CPU: Intel Core i5 Quad Core
RAM: 4 GB memory or higher
Two 2K (2048 x 1152 @ 60Hz) full-screen video playback
CPU: Intel Core i7 Quad Core
RAM: 8 GB memory or higher
Graphics card: Intel HD Graphics 4000/ ATI HD 7xxx/ NVIDIA 5XXM or higher
